Features:
Automatic: when someone enters the sensing range is input high level, people leaving the induction range is automatically delayed closing high level. Output low level.
light control (optional): module to set aside a location, you can set the photo control, or strong light during the day without induction. Light control is an optional feature, factory photo resistance is not installed. If you want, please purchase the photo resistance installed.
two trigger modes: l not repeatable, h can be repeated. Jumper option defaults to h.
not repeatable trigger mode: after the sensor output high level, delay time is over, the output will automatically change from high to low level.
can repeat triggered way: that induction output high level Hou, in delay time paragraph within, if has human in its induction range within activities, its output will has been maintained high level, until people left Hou only delay will high level becomes low level (induction module detection to human of each times activities Hou will automatically extended a delay time paragraph, and to finally once activities of time for delay time of starting points).
induction blackout time (default setting: 0.2 sec): after each induction the induction module output (high level low level), you can immediately set a blackout time, during this time the sensor does not receive any sensor signal. This feature can be achieved (sensor output and blockade times) the interval between work, can be applied to interval detection products; at the same time this function can inhibit various disturbances load in the process of switching.
wide operating voltage range: default voltage DC5V to 20V
power consumption: quiescent current 65, particularly suitable for battery-powered appliances.
high level signal output: can be easily docked with the circuit.
Specification:
Working voltage: DC5V to 20V
static power consumption: 65
output level: high 3.3V, low 0V
delay time: adjustable (0.3 sec ~18 sec)
the embargo time: 0.2 seconds
trigger mode: l not repeatable, h can be repeated, the default value for h
induction range: less than 120 degree cone angle, up to 7 meters
working temperature:- -15~+70
PCB dimensions: 32*24mm, screw hole 28mm, screw diameter 2mm, induction of lens dimensions: (diameter): 23mm (default)
1: power supply
2: high and low level output
3 power negative
H: repeatable triggers
L: not repeatable triggers
CDS: Photo control
Instructions for use:
1. the induction module powers on for about one minute after initialization, this module can output interval during 0-3 time, one minute after entering standby.
2. direct sunlight should be avoided as far as possible sources of interference, such as lighting close range module surface of the lens, so as not to introduce interference signals malfunction; using the environment as far as possible to avoid movement of the wind, the wind will cause interference to the sensor.
3. induction module used double Yuan probe, probe of window for rectangular, double Yuan (a, Yuan b Yuan) is located in more long direction of ends, dang human from left to right or from right to left walked Shi, infrared spectrum reaches double Yuan of time, and distance has poor value, poor value more large, induction more sensitive, dang human from positive to probe or from Shang to Xia or from Xia to above to walked Shi, double Yuan detection does not to infrared spectrum distance of changes, no poor value, therefore induction does not sensitive or does not work ; So when the sensor is installed should probe the dual directions and the directions of human activities up to parallel as far as possible, ensure human passes has dual induction by probes. In order to increase the sensing angle, this module uses the circle lenses, also make probes sensors on all sides, but in both directions up and down left and right side is still strong induction range, sensitivity, must still be installed as far as possible according to the above requirements.
Package Contains:

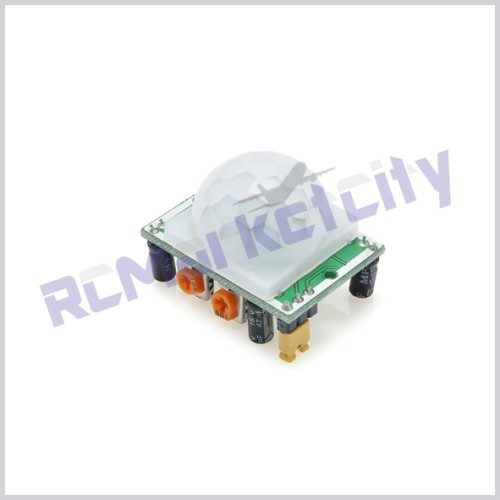

1Nos PIR Sensor
