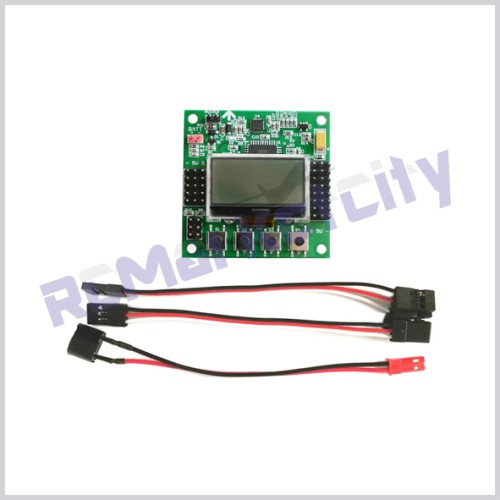

  • KK2.1.5 Flight Controller

Description:

control board for multi-rotor aircraft (Tricopters, Quadcopters, Hexcopters etc) so as to stabilize the aircraft during .

High performance, easy and convenient to use.

Updated to an incredibly sensitive 6050 MPU system making this the most stable KK board ever and allowing for the addition of an auto-level function.

Uses signals from your radio systems receiver (Rx) and passes these signals to the Atmega644PA IC via the aileron, elevator, throttle and rudder inputs.Once this information has been processed the IC will send varying signals to the ESCs which in turn adjust the rotational speed of each motor to induce controlled (up, down, backwards, forwards, left, right, yaw).

Size:Approx.51x51x12mm/2x2x0.47inch



Specification:

Built-in mode:

Dualcopter

Tricopter

Y6

Quadcopter +

Quadcopter X

Hexcopter +

Hexcopter X

Octocopter +

Octocopter X

X8 +

X8 X

H8

H6

V8

V6

Aero 1S Aileron

Aero 2S Aileron

Flying Wing

Singlecopter 2M 2S

Singlecopter 1M 4S



IC: Atmega644 PA

Gyro/Acc: 6050MPU InvenSense Inc.

Auto-level: Yes

Input Voltage: 4.8-6.0V

AVR interface: standard 6 pin.

Signal from Receiver: 1520us (5 channels)

Signal to ESC: 1520us

Firmware Version: V1.17S1



Package Includes:

 1Nos KK2.1.5 Flight Controller

Write a review

Please login or register to review

KK2.1.5 Flight Controller

  • Product Code: RMC-700002
  • Availability: In Stock
  • Rs:4,866
  • Rs:4,141

  • Ex Tax: Rs:3,509
