Product features:

1. Complete machine mounting, wave soldering, stable performance, and good consistency

Embedded central processing unit (MCU), more intelligent, lower power consumption

3. Power off setting automatic memory (MCU built-in EEPROM storage unit)

4. Control accuracy: 0.1 ℃

5. The return difference is set from 0.1, and the decimal can be controlled (0.1-15.0)

Product features:

1. Complete machine mounting, wave soldering, stable performance, and good consistency

Embedded central processing unit (MCU), more intelligent, lower power consumption

3. Power off setting automatic memory (MCU built-in EEPROM storage unit)

4. Control accuracy: 0.1 ℃

5. The return difference is set from 0.1, and the decimal can be controlled (0.1-15.0)

Technical parameters:

Temperature control range: - 50-110 ℃

Resolution: 0.1 ℃ at -9.9-99.9 Other temperature ranges 1 ℃

Temperature measurement accuracy: 0.1 ℃

Control accuracy: 0.1 ℃

Return error accuracy: 0.1 ℃

Refresh frequency: 0.5 S

Input power supply: DC 12V

Measurement input: NTC (10K 0.5%) waterproof sensor Probe cable is 30cm

Output: 1 relay output, capacity=10A 12VDC

Environmental requirements: - 10-60 ℃ Humidity 20% - 85%

Specification and dimension: 48.5 * 40mm

Overall power consumption: Static current: ≤ 10MA Pickup current: ≤ 65MA

Package Contains:

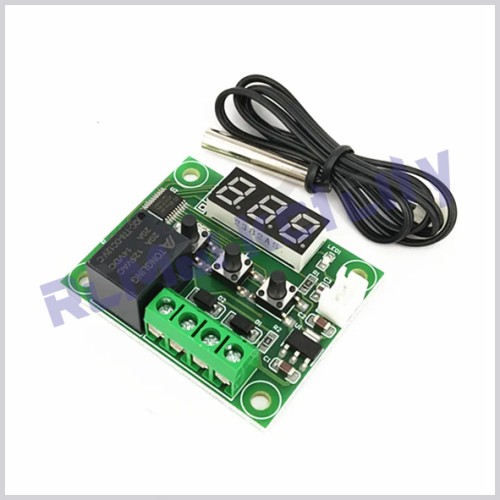

1Nos XH-W1209 Temperature Controller
1Nos Thermostat
