Description
1 USB interface: connect U disk (maximum support 32GB,not included)
2 LED: digital screen display, showing red
3 Infrared receiver module
4 TF interface: connect TF memory card (maximum support 32GB,not included)
5 AUX interface: audio input interface
6 VOL-: short press is to select the previous song; long press is to decrease the volume
7 PLAY/PAUSE: short press is to switch between pause and play; long press is to radio FM automatic station
8 VOL+: short press is to select the next song; long press is to increase the volume
9 MODE: USB/TF/FM/AUX/BLUETOOTH voice switching
 Bluetooth IC: AC6926 Bluetooth version is 5.0
 Play video formats: RM, RMVB, DVD, SVCD, VCD, DVCD, DVIX, MPEG4, AVI, VOB, etc.;
 Play audio format: MP3, WMA, HDCD; OGG, FLAC, ACC, APE
 Support picture format: JPEG, BMP, PICTURE, CDG;
 Video output support: CVBS
 Audio output support: stereo (R/L)
 Power supply selection: voltage 5V or 12V (can be selected), the minimum current is 2A (for professional
 smooth operation of the product, please choose a professional matching power supply);
 Support HD video resolution (1280*720; 1920*1080)
 Support e-book function to easily browse TXT text
 Multiple voice-over languages (English, French, Portuguese, German, Danish, etc.),
 Radio FM frequency: 87.5-107.5 MHZ
 Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 5V or 12V (optional)
 About the structure: Panel size: 107*25 MM, the two corners of the panel and the position of the screw holes, then the cover surface, the depth of the board is 40 MM

Package Contains:

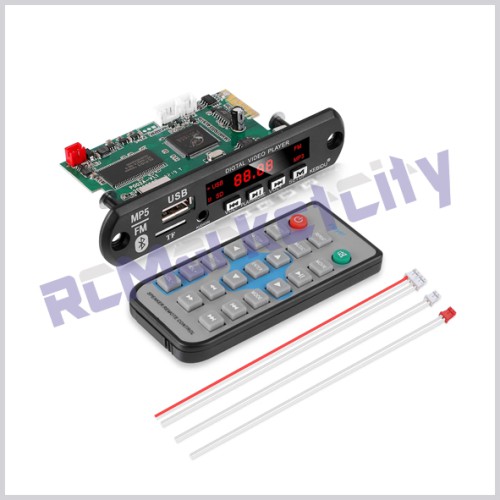

1Nos MP5 WMA WAV Decoder Board
1Nos Remote control (without batteries)
1set Cables
